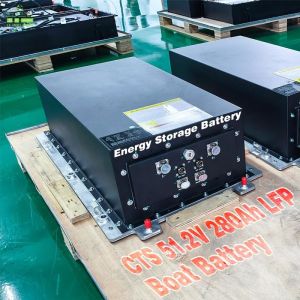

    CTS Electric Boat Battery Module 51.2V 280Ah With PDU Box For Marine Application

    Ask Lasest Price
    Brand Name : CTS battery
    Model Number : CTS-51280
    Certification : CE/MSDS/UN38.3/IEC62619/DNV
    Payment Terms : L/C, D/A, T/T, Western Union
    Supply Ability : 5000 units per month
    Delivery Time : 15-20 working days
    • Product Details
    • Company Profile

    CTS Electric Boat Battery Module 51.2V 280Ah With PDU Box For Marine Application

    Electric Boat Battery LiFePo4 Battery Module 51.2V 280Ah With PDU Box
    ╣PRODUCT DESCRIPTION
    CTS 51.2V 280Ah Marine LiFePo4 Battery Module:
    Grade-A LiFePO4 cell, with ≥6000 cycles lifespan, ensuring exceptional stability.
    Designed for marine applications, undergoing DNV certification, equipped with explosion-proof valve, heating input/output, and cooling support for harsh sea conditions.
    High-precision BMS for real-time voltage, current, and temperature monitoring, preventing overcharge,over-discharge, and thermal runaway.
    Standard module with PDU for controlling dual battery packs, supporting GBT/CCS1/CCS2 charging standards.
    Comes with cables, charging socket, and other accessories for ready-to-use installation.
    CTS Electric Boat Battery Module 51.2V 280Ah With PDU Box For Marine Application
    MODEL No.
    CTS51280
    ELECTRICAL SPECIFICATIONS
    Cell Type - Chemistry
    Prismatic lifepo4 cell - 280Ah, 1P16S
    Rated Capacity
    280Ah
    Rated Voltage
    51.2V
    Energy
    14.33Wh
    Dimensions (L x W x H)
    L870*W500*H242 mm
    Weight
    About 110Kg
    Housing Material
    Lower case aluminum alloy,
    upper cover stainless steel
    Enclosure Protection
    IP67
    DISCHARGE/CHARGE SPECIFICATIONS
    Discharge Cut-off Voltage
    40V
    Max Continuous Discharging Current(@25℃)
    280A max
    Peak Discharge Current(@25℃)
    560A for 30 seconds
    Charging Limited Voltage
    58.4V
    Max Charging Current(@25℃)
    140A
    Recommend Charge Current (@25℃)
    Less than 140A
    TEMPERATURE SPECIFICATIONS
    Charge Temperature Range
    0~45℃
    Discharge Temperature Range
    -20~55℃
    Recommended Operating Temperature
    15~35℃
    Storage Temperature & Humidity Range
    (Less than 1 month)
    -20~35℃, 45~75%RH
    Storage Temperature & Humidity Range
    (Less than 1 month)
    -10~35℃, 45~75%RH
    Recommended Storage Temperature & Humidity Range
    15~35℃, 45~75%RH
    Other
    Cooling Method
    Build in Pi heating film,
    Build in liquid cooling plate

    * Global on-site technical support.
