Hunan CTS Technology Co,.ltd
5 Years
| Ask Lasest Price | |
| Brand Name : | CTS electric scooter lithium battery |
| Model Number : | E-scooter lifepo4 lithium battery |
| Certification : | MSDS,UN38.3 |
| Price : | Negotiable |
| Payment Terms : | T/T，Paypal，, L/C |
| Supply Ability : | 5000pcs/per month |
| Delivery Time : | 30-45days |
>>>>>1. Main Parameters
| ITEMS | PARAMETERS | |
| Electrical Characteristics | Cells | LFP83156241/LFP90160227-3.2V30AH |
| Nominal Voltage | 72V | |
| Nominal Capacity | 60Ah | |
| Energy | 4416Wh | |
| Internal Resistance(AC) | ≤20mΩ | |
| Cycle Life | >3500 cycles | |
| Months Self Discharge | <3% | |
| Efficiency of Charge | 100% @0.5C | |
| Efficiency of Discharg | 96~99% @1C | |
| Standard Charge | Working Voltage(V) | 60V-84V |
| Max. Charge Current(A) | 30A | |
| Standard Discharge | Standard Current | 60A |
| Max Discharge Current | 3C, 180A | |
| Discharge Cut-off Voltage | 57.5V | |
| Environmental | Charge Temperature | 0ºC to 55ºC (32F to 131F) @60±25% Relative Humidity |
| Discharge Temperature | -20ºC to 60ºC (-4F to 140F) @60±25% Relative Humidity | |
| Storage Temperature | -20ºC to 45ºC (-4F to 113F) @60±25% Relative Humidity | |
| Mechanical | Approx.Weight | 35kg |
| Dimension (mm) | 360*172*290mm(customizable) | |
| Other Design | Display SOC,BMS, Temperature |
>>>>>2. Battery Function Design
>>>>>3. More 60v 72v OEM/ODM Batteries
<1>. 60V 35Ah battery Model No:PF6035
<2>. 60V 50Ah/80Ah/100Ah Battery Model No:PF6050/80/100
| Nominal voltage | 60.8V |
| Nominal capacity | 50Ah/80Ah/100Ah @0.5C Discharge |
| Dimension | 50Ah: 170*360*360mm |
| 80Ah: 200*250*650mm | |
| 100Ah: 192*425*630mm | |
| Weight | 50Ah: 32kg |
| 80Ah: 65kg | |
| 100Ah: 75kg | |
| Working voltage | 38-69.35V |
| Discharge rate | Continuous:≤1c Max:3c/5s |
| Lifespan | ≥2000 cycles |
| Charge rate | ≤1c |
| Suggested discharge & charge rate | 0.5c |
| Operating temperature | Charging: 0°C ~ 45°C |
| Discharging: -20°C ~60°C |
<3>. 72V 20Ah/30Ah/40Ah Battery Model No:PF7220/30/40
| Items | 72v 20Ah LFP Battery | 72v 30Ah LFP Battery | 72v 40Ah LFP Battery |
| Nominal Voltage | 73.6v | 73.6v | 73.6v |
| Nominal Capacity | 20Ah | 30Ah | 40Ah |
| Working Voltage(V) | 60V-84V | 60V-84V | 60V-84V |
| Energy | 1472Wh | 2208Wh | 2944Wh |
| Net Weight | 12kg | 19kg | 20Kg |
| Dimension (mm) | 200*172*290mm | 220*172*290mm | 400*172*290mm |
| Nominal voltage | 72V |
| Nominal capacity | 150Ah/300Ah @0.5C Discharge |
| Dimension | 150Ah: 800*360*250 mm |
| 300Ah: 550*620*750mm | |
| Weight | 150Ah: 100kg |
| 300Ah: 265kg | |
| Working voltage | 60-84V |
| Discharge rate | Continuous:≤1c Max:3c/5s |
| Lifespan | ≥1500 cycles |
| Charge rate | ≤1c |
| Suggested discharge & charge rate | 0.5c & 0.5c |
| Operating temperature | Charging: 0°C ~ 45°C |
| Discharging: -20°C ~60°C |
>>>>>4. How to assemble batteries

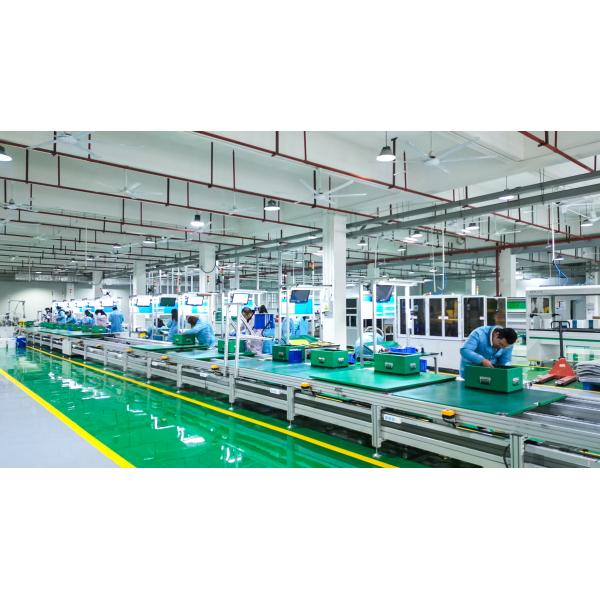

>>>>>5. Factory View

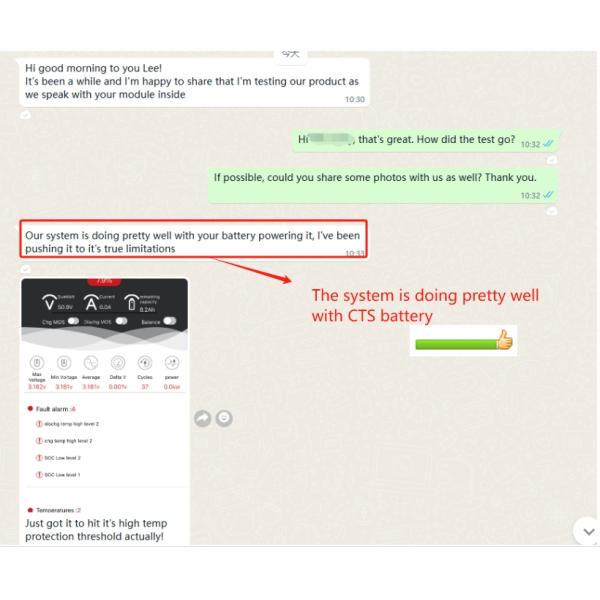

>>>>>6. Customer Feedback
>>>>> Order Information
Sample is avaliable and welcome!
Trade term: FOB Shenzhen or Guangzhou; EXW, CIF,DDU and DDP are available.
Delivery time: 7-10 working days for sample order, 15- 25 working days for mass
order.
Welcome you to visit our production base and to check our
production lines!
If any requirements on this lifepo4 battery, please feel free to
contact me without hesitate!
|
|
